CPL 165 Sib Nqus Compass Tub Rog Aluminium Standard Ntsig Compass
marine magnetic compass, marine stanard nkoj compass, marine txhuas ntsug sib nqus magnetic Specifications: Hom CPL-165 tus qauv sib nqus sib nqus, txheem compass 1. siab precision 2. yooj yim kho qhov sib txawv 3. kev ua haujlwm ruaj khov 4. qauv hauv kev tsim kho 5. CCS .. Cov.
- Khoom Taw qhia
Yog hais tias lub cpl 165 sib nqus marine aluminium qauv txheem ntsug sib nqus raws li qhov koj xav tau, txais tos rau lag luam wholesale peb cov khoom siv zoo nrog cov nqi sib tw. Peb yog ib qho ntawm cov kev sib nqus hlau sib nqus manufacturers thiab tseem muaj cov kws tshaj lij nyob hauv Suav teb. Peb ib txwm nyob ntawm koj qhov kev pabcuam.
CPL 165 Sib Nqus Compass Tub Rog Aluminium Standard Ntsig Compass
marine magnetic compass, marine stanard nkoj compass, marine txhuas ntsug sib nqus compass
Specifications:
Hom CPL-165 txheem ntsugmagneticcompass, qauv txheem
1. high precision
2. yooj yim kho qhov txawv
3. Tus qauv ua kom zoo
4. coj qauv hauv kev tsim kho
5. CCS daim ntawv pov thawj
CPL 165 sib nqus lub tog raj kheej marine txhuas Standard compass Standard Qhov kev sib nqus marine sib nqus no yog hom zoo ntawmtransparentliquid sib nqus ntsuas. Nws yog tsim los ua kom tau raws li kev xav tau ntawm GB / T14108-2011and ISO-449 tus qauv xa chav kawm Ib qho kev sib nqus.Qhov nws tsim nyog rau lub nkoj loj thiab nruab nrab ua raws li tus qauv txuas lossis cov sib nqus. Thiab nws yog siv rau ntsuas azimuth thiab taw qhia cov nqe lus nqe kawm. Nws yog qhov yooj yim rau kev tsim kho, yooj yim rau kev khiav lag luam thiab kev paub ntau hauv kev lag luam.
Cov ntaub ntawv lub ntsiab:
Txoj Haujlwm | Cov Ntaub Ntawv |
Hu xov tooj | 165mm |
Dial kawm tiav | 0 ° ～ 360 ° 1 ° rau txhua daim phiaj |
Kev siv ntsuas kub | -25℃~+60℃ |
ndicating sib txawv （H=35μT ， T=20 ± 3 ℃） | ≤0.5° |
Lub sijhawm ib nrab （H=35μT ， T=20 ± 3 ℃） | ≥8.62 S |
Kev sib txhuam txhuam kev sib txawv （H=35μT ， T=20 ± 3 ℃） | ≤0.09° |
Main semicircle tus kheej heterodyne kho lub zog | 1°～45° |
Thib ob semicircle tus kheej heterodyne kho lub zog | 1 ° ～ 6 ° (muaj lub zog sib nqus Q=45 °) |
Quadrant tus kheej heterodyne kho lub zog | 0.5°～10° |
Inclining tus kheej heterodyne kho lub zog | －75～＋75μT |
Lub teeb pom kev siv hluav taws xob | AC 220V ， DC 24V |
Qhia Tawm Qhov Loj | 720 × 430 × 1200mm |
Txoj kab uas hla ntawm lub qhov | Tsho Liab 420 ApertureΦ16 |
qhov hnyav | 33kg |
CPL-165 tus qauv muag zaub ncaj kab
CTNS Tsis muaj. | tivthaiv | Qty. | Kev piav qhia | Pobmuaj hnub nyoog | ||
Binnacle | neeg tsim txiaj | 1 / teeb | Thawv | |||
Txom Nyem | Yus Heterodyne | Flinder' s hlau bar | Φ5×500 | 3 / tuav | ||
Φ5×350 | 2 / tuav | |||||
Φ5×250 | 3 / tuav | |||||
Sib Nqus Compassbowl | koob lub tais | 1 / teeb | woven hnab | |||
Ntxiv cov kua rau Compass | 2 / lub fwj | |||||
Ntawv Hnab | 1 / teeb | S CCS lossis ZY） | 1 / teeb | |||
Daim ntawv pov thawj ntawm conformity | 1 / pc | |||||
Siv Kev Qhia | 1 / pc | |||||
Txheej txheem Ntau Lawm | 1 / teeb | |||||
(43×57.5×23.5) | Cuab Yeej | Yus Heterodyne | (300×100×0.5) | 11 / pcs | ||
(Φ6×100) | 12 / tuav | |||||
Inclining self heterodyne kho kom haum cov hlau nplaum | Φ7.5×75 | 1 / bar | ||||
Φ7.5×50 | 1 / bar | |||||
Khoom seem | Kab rov tav nplhaib tes tsho | 2 / pcs | ||||
Gasket rau kua txhaj qhov | 1 / pc | |||||
Teeb lub teeb | 1 / pc | |||||
Nkauj kho siab \ txiv ntoo \ Shim | 8 / teeb tsa | |||||
Plaubuad self self tus kheej heterodyne kho lub thawv ntsia hlau \ Shim | 2 / teeb | |||||
Hloov lub thawv tswj lub thawv txaij ntoo \ txiv ntoo \ Shim | 4 / teeb tsa | |||||
Ntsia thawv / net / shim | 4 / teeb tsa | |||||
Daim duab ntawm cov duab kos ntawm Projection Magnetic Compass installation | 1 / teeb | |||||
Hloov lub thawv tswj | 1 / teeb | |||||
Plaubuad self self tus kheej heterodyne adjustingbox | 2 / teeb tsa | |||||
Quadrant tus kheej heterodyne kho lub thawv ntawv | 2 / teeb tsa | |||||

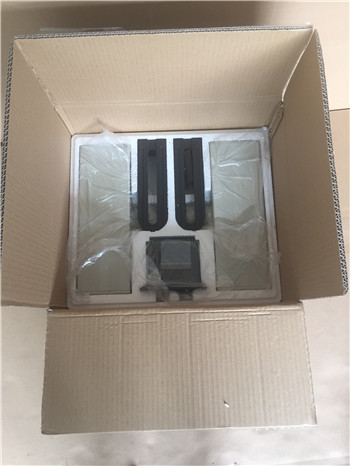

MagneticCompass CPL-165 pob yog tag nrho 3 cartons. Lub pob yog zoo thiab muaj zog ..
Khoom seem& Cov khoom siv ntxiv:
Kho cov kav hlau nplaum tas li: 12pcs
Kho cov ntawv hlau ntshiab rau plaub tus kheej kev sib txawv: 10pcs
Sib nqus iav: 1set
Roj yas tso kua roj: tag nrho ntawm cov kua rau tshem tawm cov roj ua npuas ncauj
Ntsia thawv cov qhov muag teev: 2pcs (24v 0.06A)
Roj Hmab washer: 1pc
